9 in 1 LED Bulkheads with Power Switchable 12W-18W-22W and CCT Switchable & Built-in Microwave Sensor

CCT LED BLKHEAD MICROWAVE

£28.00

  • Description
  • Specifications

Description

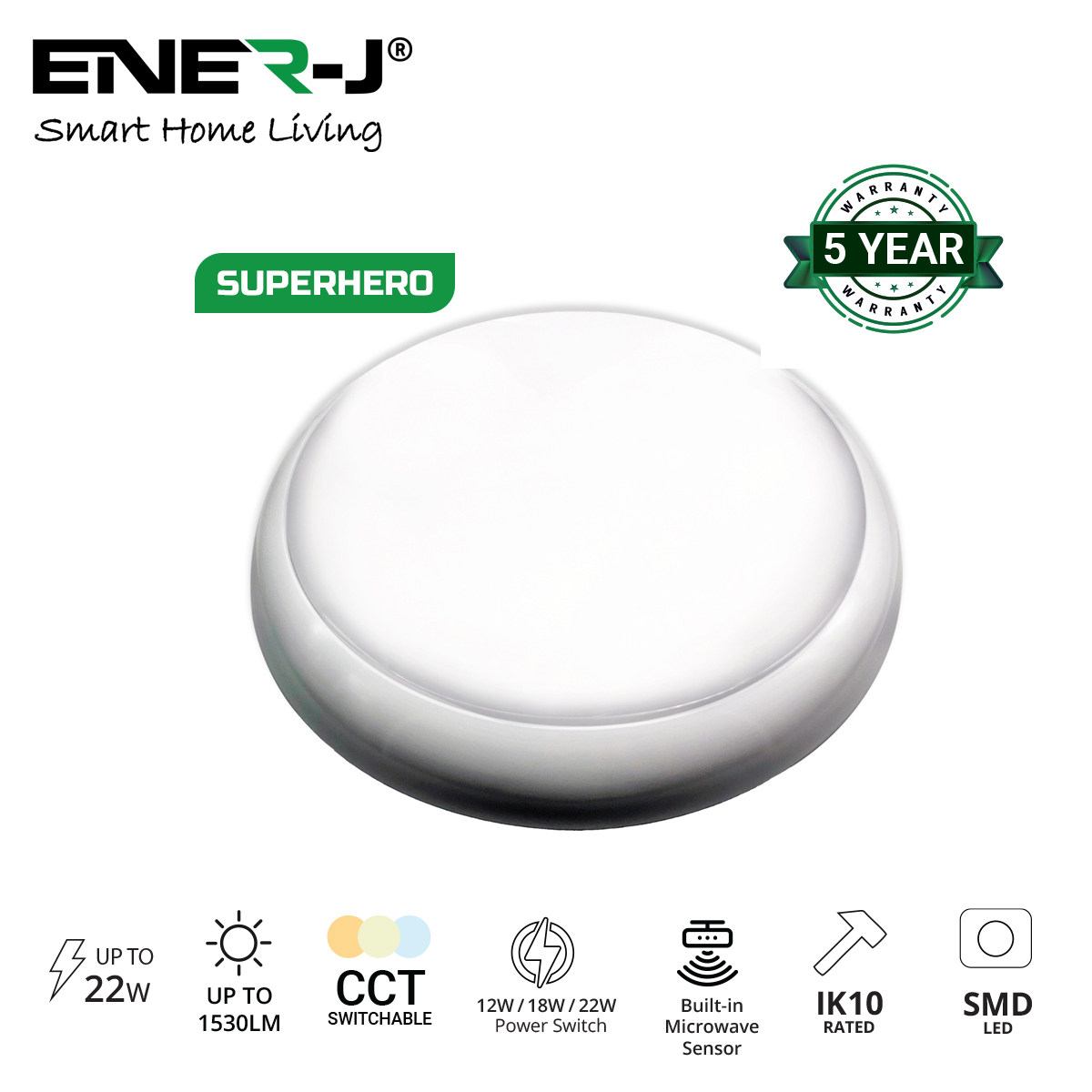

  • Experience ultimate flexibility and performance with the 9-in-1 SUPERHERO LED Bulkhead. With power (12W-15W-18W) and CCT switchable options and a built-in microwave sensor, this robust 320mm light fixture is perfect for any setting, from residential to commercial spaces. Its IP65 and IK10 ratings ensure durability and reliability, making it ideal for indoor and outdoor use.

    Power & CCT SwitchableEasily switch between 12W, 15W, and 18W power settings and select from 3000K, 4000K, or 6000K color temperatures to meet various lighting needs.

    Built-in Microwave SensorIntegrated microwave sensor for automatic lighting control, making it suitable for diverse environments and enhancing energy efficiency.

    Robust and DurableWith an IP65 rating for water and dust resistance and an IK10 rating for impact resistance, this bulkhead is perfect for public spaces, bathrooms, and outdoor areas.

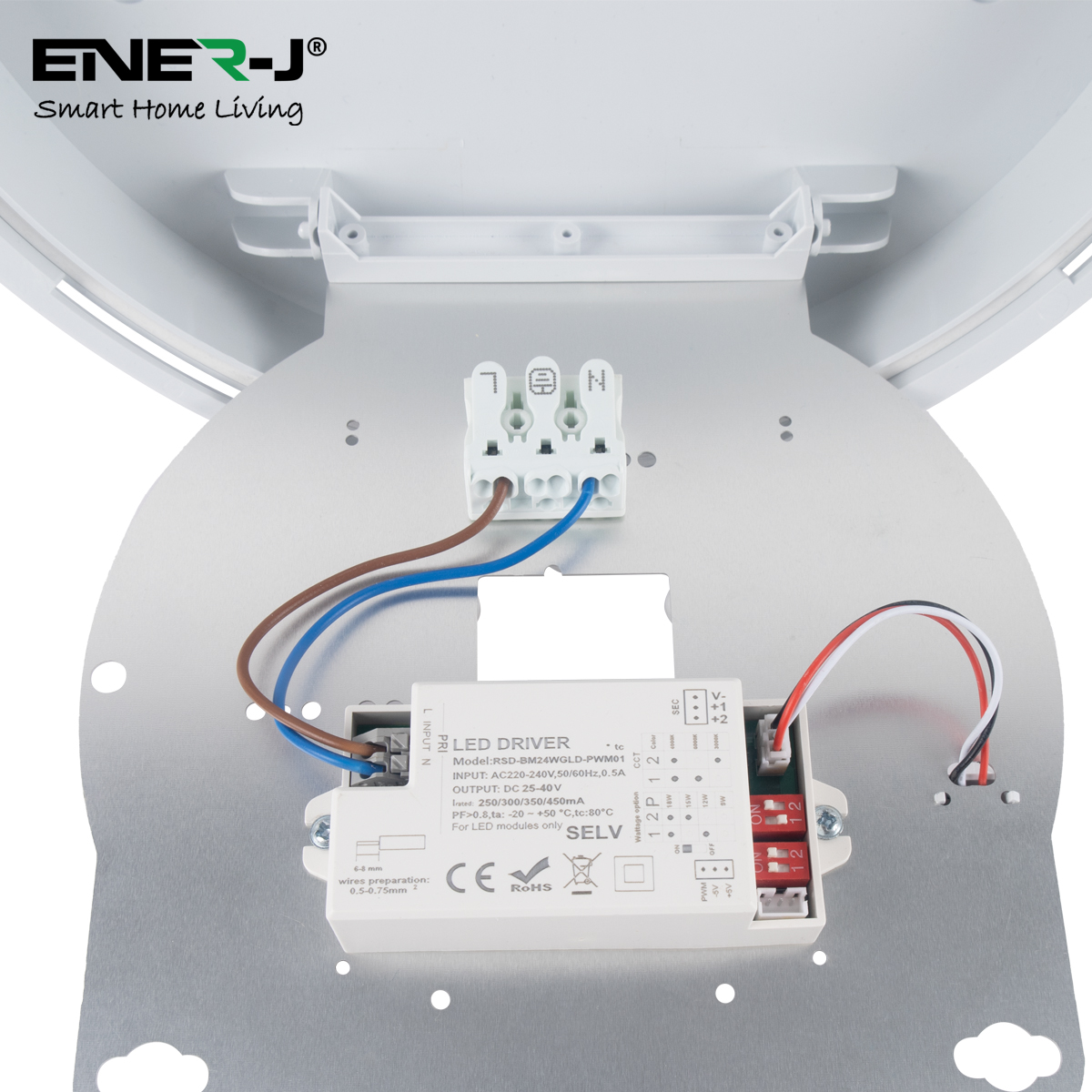

    Easy InstallationFeatures a push-fit connector for quick and hassle-free installation, saving time and ensuring a secure fit.

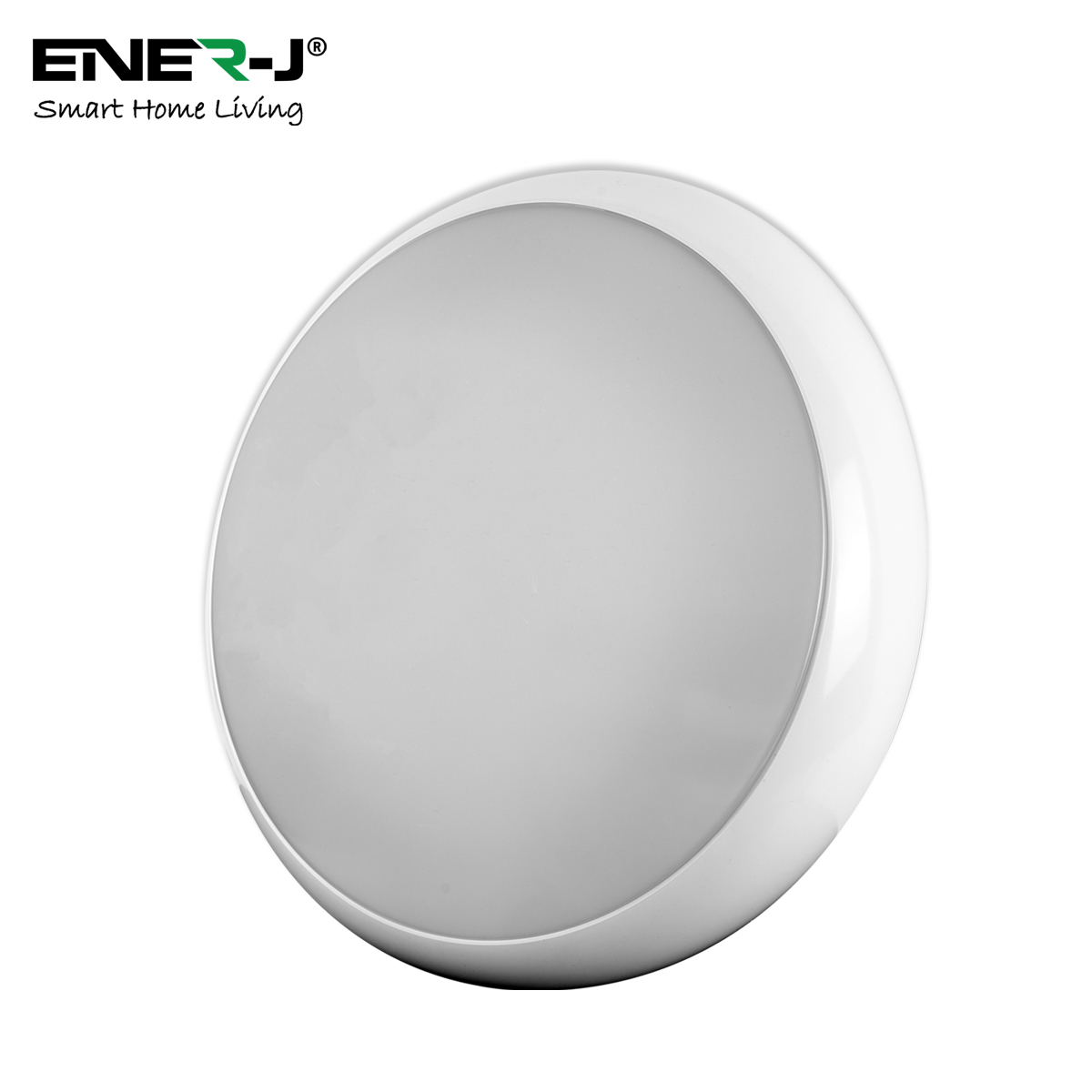

    Sleek DesignMatt white textured finish with an opal PC cover for a modern look that complements any decor style.



Specifications

Technical Specifications:

Feature Details
Product Wattage 12W / 15W / 18W
Product Lumen 1020Lm / 1275Lm / 1530Lm
Lumen/W 85
Color Temperature (Kelvin) 3000K / 4000K / 6000K
Energy Rating E
Dimmable No
Beam Angle 120º
Power Factor >0.8
CRI >80
Lifetime (Hours) 35,000
SDCM <6
Product Voltage 220-240V
Hertz 50/60
Operating Temperature -20°C to 45°C
Terminal Block 3-way fast fix
Class 2 (No earth required)
Microwave Movement Sensor
Input Voltage 220-240V AC
Rated Voltage 230V AC
Stand-by Power ≤0.1W
Operating Frequency 5.8 GHz ±75 MHz, ISM
Transmitting Power 1mW Max.
Hold Time 5s / 30s / 1min / 3min / 5min / 10min / 20min / 30min
Detection Area 100% / 75% / 50% / 25%
Daylight Sensor 2Lux / 10Lux / 25Lux / 50Lux / Disable
Detecting Radius 0.3m/s ≥3.5m, 1m/s ≥2.5m (mounting height 3m)
Mounting Height 4m Max
Detecting Angle 150º
Operating Temperature -25°C to 60°C
Storage Temperature -40°C to 80°C
Humidity ≤85%
